Unattended & Silent Installations

This page is a freshly started work in progress.
On this page I'll collect (links to) sample scripts and commands for unattended and silent software installations.
My definition of an unattended installation is any installation that does not require user input but may display dialogs or progress bars etc. Silent installations are installations without any visible interface elements.

The main focus will on installing software, drivers, etcetera in Windows (NT 4 and later, not 9*/ME), not on installing Windows itself, though some links will be provided.

I won't restrict myself to a single script language, the goal is getting the job done.

The installation commands or scripts are roughly categorized:

• General
• Harddisks
• Network
• Windows
• Computer accounts
• User accounts & groups
• Permissions
• Registry
• Printing
• Devices and drivers
• Encryption
• .MSI Files
• Unattended installation procedures for specific software
• Check software requirements
• Check hardware requirements
• Links/Related Stuff

General

• A must-read if you are going to prepare unattended installations: Unattended/silent installation switches for Windows apps at sourceforge.net

• When you write scripts for unattended installations, try to assume as little as possible:

• don't assume someone is logged in when using Sendkeys( ),
• don't assume CapsLock will be off when using Sendkeys( ) to enter passwords,
• don't assume a batch file's startup directory is its working directory (fails when started from UNC paths),
• don't assume write access to the current directory, nor to HKEY_LOCAL_MACHINE,
• never assume any Windows version,
• don't assume the first partition or even the first harddisk is the one where Windows is installed,
• don't assume Command Extensions will be enabled,
• don't assume DIR won't display hidden files,
• don't assume the .VBS extension will be associated with CSCRIPT.EXE,
• don't assume...

Well, you get the idea.
Just use common sense.

Verify your assumptions, or make them true.

• For example, a batch file's startup directory can be made the working directory by starting with the command PUSHD "%~dp0" (don't forget the POPD command at the end of the batch file). This is explained on my Clever Tricks page.
• Use the full path to files and executables if possible, instead of assuming they will be located in the current directory.
  Use "%~dp0command_name.exe" if an executable is located in a batch file's own startup directory.
• After issuing any command, check its return code or "ErrorLevel" to see if it succeeded or failed.
• Check the current Windows version, and if necessary write different subroutines for each Windows version.
• Many companies associate .VBS with Notepad, as a safety precaution, to block macro viruses.
  Always run VBScript files with the CSCRIPT command, or use my VBSAssoc.bat to temporarily change the .VBS file type association (don't forget to call restore_vbs_assoc.bat at the end of the installation to restore the original file type association).

And last but not least, log the results of each action of your install scripts.

• One of my installation batch files once returned an errorlevel that seemed to be random at first. After several days I found out that emptying an already empty environment variable (SET varname=) will result in an errorlevel 1, whereas the errorlevel will be 0 if the variable did have a value before emptying it.

If you intend to use an installation batch file in a package (Wise, SMS, MSI, ...) you may want to perform the error handling yourself, and end the batch file with the command EXIT 0 to make sure the package won't be uninstalled because of an unexpected errorlevel.

And check intermediate errorlevels using lines like this following each relevant command line:

    IF NOT "%Debug%"=="" ECHO Return code: %ErrorLevel%

Now all you need to do to test the intermediate errorlevels is set environment variable %DEBUG% to any value and rerun the batch file.

• Use my GetUnins.vbs script to find uninstall commands:

    CSCRIPT //NoLogo drive:\path\GetUnins.vbs /F:"filter_string"

/F:"filter_string" restricts the returned list to software that has a description which includes filter_string.
With the optional /R switch the filter is interpreted as a regular expression.
Find the uninstall string for the software you want to uninstall.

In case the software was installed from an .MSI file, the uninstall command will probably look like this (unique_identifier is a string that, as the name suggests, uniquely identifies specific software):

    MsiExec.exe /I{unique_identifier}

This is the command for an interactive uninstall or repair!
Change it to an uninstall command by replacing MSIEXEC.EXE's /I switch by /X and append the /qn /norestart REBOOT=ReallySuppress switches to make it a silent uninstall without reboot:

    MSIEXEC.EXE /X{unique_identifier} /qn /norestart REBOOT=ReallySuppress

• If you're lucky, you'll find the command line switch(es) for unattended (un)installs in the documentation or by using the /? or -? switch.
If not, you can sometimes find undocumented command line switches using STRINGS.
But sometimes you may just need to guess what command line arguments will make an (un)install silent.
If all else fails, experiment with the following switches:

• /ni
• /q
• /qn
• /quiet
• /s
• /silent

Try dashes instead of forward slashes too (-S instead of /S), and check both upper case and lower case.

Harddisks

Preparing harddisks for a new operating system is tricky, because it can be done only when you boot from another medium like a floppy disk, CD-ROM or bootable USB stick -- or another harddisk.

• Probably the most well-known tool to (re)partition harddisks is FDISK.
FDISK is a native DOS command, so if you created a bootable DOS diskette you probably have a copy of FDISK.EXE or FDISK.COM available.
From my own experience, however, I would advise against using FDISK on modern computers.
FDISK has been known to miscalculate partition sizes and create overlapping partitions. In most cases you wouldn't notice this until a partition is almost completely filled with data, which will then be lost.

• If you still own a copy of an old Norton/Symantec Ghost version, you can use GDISK to (re)partion harddisks.
Copy GDISK.EXE to your bootable medium (floppy disk, CD-ROM, USB stick).
GDISK.EXE is for 16-bits DOS; if you boot with a 32-bits OS, like BartPE, use GDISK32.EXE instead.
Boot from that medium and issue the command GDISK without any command line arguments to list all harrdisks with their numbers. This is especially important if you boot from a USB medium, as this may often be recognized as harddisk 1, and the internal harddisk as harddisk 2 (depending on the computer's BIOS and the type of USB medium). And we wouldn't want to accidentally repartition our bootable USB stick or external harddisk, now would we?

Let's suppose our USB stick is listed as harddisk 1, then we can repartition the "real" harddisk (2) with the following commands:

    GDISK 2 /DEL /ALL
    GDISK 2 /MBR
    GDISK 2 /CRE /PRI /SZ:4096 /FOR /Q /V:SYSTEM
    GDISK 2 /CRE /EXT
    GDISK 2 /CRE /LOG /FOR /Q /V:DATA

GDISK 2 /DEL /ALL will erase all existing partitions on harddisk 2.
GDISK 2 /MBR will recreate a standard MBR on harddisk 2, important if the harddisk was somehow encrypted, like (IBM) laptops with their BIOS password set.
GDISK 2 /CRE /PRI /SZ:4096 /FOR /Q /V:SYSTEM will create a new 4GB primary partition labeled "SYSTEM" and quick-format it.
GDISK 2 /CRE /EXT will create an extended partion on the rest of the disk.
GDISK 2 /CRE /LOG /FOR /Q /V:DATA will create a logical drive using the entire extended partition, label it "DATA" and quick-format it.

Read Symantec's detailed explanation of all GDISK command line switches.

Network

By default, Windows is installed with DHCP enabled for all network adapters.
However, you probably want to use static IP addresses on servers.

This is where NETSH is put to good use.
NETSH is available on Windows XP and later versions.

I won't describe all NETSH's command line parameters, as there are enough to write a book on it.
Start by typing NETSH /? on a command prompt and explore from there, if you have some time to spare.

What I will describe is how to create your own NETSH scripts.
As an example we'll use NETSH to set a static IP address for a network adapter, instead of DHCP.

First check the current settings using the command:

IPCONFIG /ALL

For a single network adapter you'll probably see something like this:

Windows IP Configuration

        Host Name . . . . . . . . . . . . : mypc
        Primary Dns Suffix  . . . . . . . :
        Node Type . . . . . . . . . . . . : Unknown
        IP Routing Enabled. . . . . . . . : No
        WINS Proxy Enabled. . . . . . . . : No
        DNS Suffix Search List. . . . . . : lan

Ethernet adapter Local Area Connection:

        Connection-specific DNS Suffix  . : lan
        Description . . . . . . . . . . . : Realtek RTL8139/810x Family Fast Ethernet NIC
        Physical Address. . . . . . . . . : 00-11-22-33-AA-BB
        Dhcp Enabled. . . . . . . . . . . : Yes
        Autoconfiguration Enabled . . . . : No
        IP Address. . . . . . . . . . . . : 10.0.0.65
        Subnet Mask . . . . . . . . . . . : 255.255.255.0
        Default Gateway . . . . . . . . . : 10.0.0.1
        DHCP Server . . . . . . . . . . . : 10.0.0.1
        DNS Servers . . . . . . . . . . . : 10.0.0.1
        Lease Obtained. . . . . . . . . . : Saturday, March 13, 2010 22:00:39
        Lease Expires . . . . . . . . . . : Sunday, March 14, 2010 22:00:39

Before we change any network setting, we'll first save the current settings to a file:

NETSH interface dump ip > netsh.dhcp.script

If we ever want to restore the current DHCP setting, all we need to do is issue the following command:

NETSH -f netsh.dhcp.script

Now we'll change the network adapter's IP settings manually.
Open the Network Connections properties, next open the network adapter's properties, and than the TCP/IP properties.
Click "Use the following IP address" and fill in all required IP addresses.
When finished, click "OK" and close the dialogs.

Type IPCONFIG /ALL again to check the new settings:

Windows IP Configuration

        Host Name . . . . . . . . . . . . : mypc
        Primary Dns Suffix  . . . . . . . :
        Node Type . . . . . . . . . . . . : Unknown
        IP Routing Enabled. . . . . . . . : No
        WINS Proxy Enabled. . . . . . . . : No

Ethernet adapter Local Area Connection:

        Connection-specific DNS Suffix  . :
        Description . . . . . . . . . . . : Realtek RTL8139/810x Family Fast Ethernet NIC
        Physical Address. . . . . . . . . : 00-11-22-33-AA-BB
        Dhcp Enabled. . . . . . . . . . . : No
        IP Address. . . . . . . . . . . . : 10.0.0.135
        Subnet Mask . . . . . . . . . . . : 255.255.255.0
        Default Gateway . . . . . . . . . : 10.0.0.1
        DNS Servers . . . . . . . . . . . : 10.0.0.1

If the settings are OK we'll save these new settings to another file:

NETSH interface dump ip > netsh.staticip.template

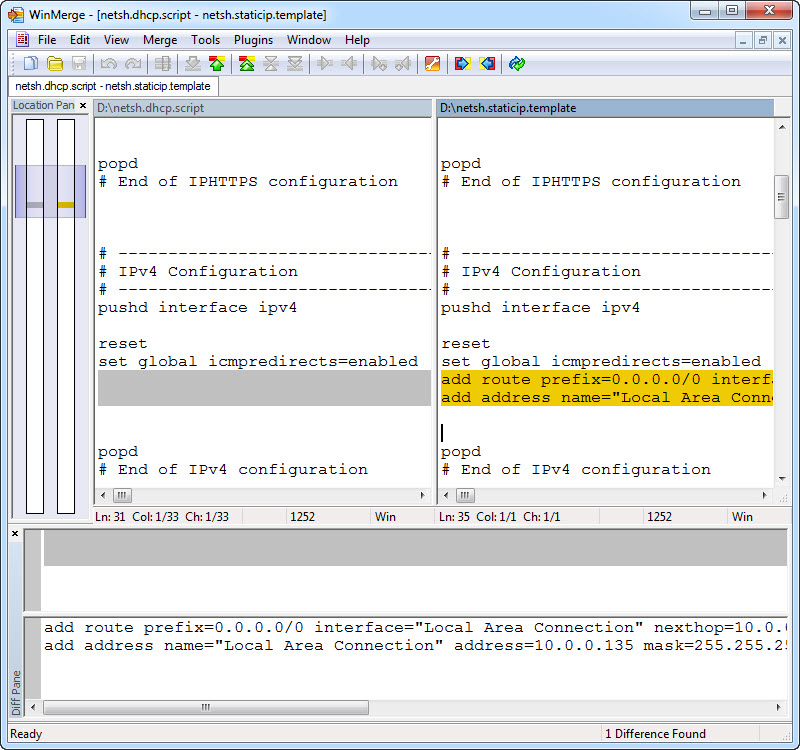

Open this file netsh.staticip.template in any text editor and look for the following lines:

set address name="Local Area Connection" source=static addr=10.0.0.135 mask=255.255.255.0
set address name="Local Area Connection" gateway=10.0.0.1 gwmetric=0
set dns name="Local Area Connection" source=static addr=10.0.0.1 register=PRIMARY
set wins name="Local Area Connection" source=static addr=none


popd
# End of interface IP configuration

We could copy the template to a separate script for each server, and adapt the addresses manually.
Or we can remove these last lines shown above from the template and create a batch file that will add them on the fly:

@ECHO OFF
:: This batch files requires 1 parameter: the last octet for the new static IP address
IF "%~1"=="" EXIT 1
:: Check if the parameter is a number between 0 and 255
SET /A 1 * %1 2>NUL | FIND "%~1" >NUL || EXIT 1
IF %1 LSS   0 EXIT 1
IF %1 GTR 255 EXIT 1
:: Copy the template to the script for the new static IP address
COPY /Y netsh.staticip.template netsh.staticip%1.script
:: Append the missing lines, filling in the last octet
>> netsh.staticip%1.script ECHO set address name="Local Area Connection" source=static addr=10.0.0.%1 mask=255.255.255.0
>> netsh.staticip%1.script ECHO set address name="Local Area Connection" gateway=10.0.0.1 gwmetric=0
>> netsh.staticip%1.script ECHO set dns name="Local Area Connection" source=static addr=10.0.0.1 register=PRIMARY
>> netsh.staticip%1.script ECHO set wins name="Local Area Connection" source=static addr=none
>> netsh.staticip%1.script ECHO.
>> netsh.staticip%1.script ECHO.
>> netsh.staticip%1.script ECHO popd
>> netsh.staticip%1.script ECHO # End of interface IP configuration
NETSH -f netsh.staticip%1.script

To set static IP address 10.0.0.156 on another server, run the batch file above with 156 as its only command line argument.

Windows

Windows Server 2008 Core - Quick Installation Guide.
Many commands listed here use WMIC and aren't limited to Windows Server 2008 (Core).
Included are commands to rename a computer, join a new workgroup, and many more...

Microsoft's Remote Installation Services (RIS)

Customizing Unattended Setup

Unattended Windows, the definitive how-to guide

Unattended, A Windows deployment system at sourceforge.net

Computer Accounts

Microsoft's NETDOM command line tool can be used to:

• Join computers to an Active Directory or Windows NT 4.0 domain or workgroup
• Manage computer accounts (add, remove and query, move to another domain, rename a computer)
• Manage trust relationships between domains

User Accounts & Groups

As we are discussing software installations, we willl focus on local users and groups.
However, since we'll be using the NET command, it won't be that hard to translate the commands to domain users and groups.

    NET USER new_account new_password

creates a new user account and sets its password.
The following command will add the new command to the local Administrators group:

    NET LOCALGROUP Administrators new_account /ADD

To create a new domain administrator account, use the following commands:

    NET USER new_account new_password /DOMAIN
    NET GROUP "Domain Admins" new_account /ADD /DOMAIN

This works for Active Directory too, the new account will be added to the "Users" container.
In Active Directory, the DS Tools are the preferred tools to manage user accounts, groups, computer accounts and OUs.

Many commands on my Useful Commands for Windows Administrators page can be useful for unattended installations too.

Permissions

Permissions on files and folders can be set using CACLS or its Resource Kits counterparts XCACLS or SUBINACL.
SUBINACL can even be used to find and replace permissions.

To change ownership third party tools like CHOWN or SUBINACL are required.

Registry permissions have always been a pain...

Or wait a minute, is this true...?

Enter SeCEdit & MMC!

Using MMC to create custom security templates, you can use SeCEdit to apply them unattendedly.
This way you can set permissions, inheritance and/or ownership on files, folders, services and registry keys.
Read more on my SeCEdit page.

Or download and use Microsoft's SUBINACL.EXE, which allows a little more "detailed" permissions configuration.

Registry

For registry changes, REGEDIT is the tool to use.
It may not be as simple to use as REG.EXE, but at least its command line usage has remained unchanged since Windows NT 4. If you plan on using REG.EXE, on the other hand, you'll need to check its version and modify the command line(s) accordingly.

The command you are likely to use most often is the import (or merge) command:

    START /WAIT REGEDIT.EXE /S regfile.REG

REGEDIT.EXE regfile.REG imports (or merges) regfile.REG into the registry.
/S makes this a silent import (by default the user is prompted for confirmation, and the import is confirmed afterwards).
START /WAIT makes the batch file wait for REGEDIT to finish the import.

Printing

• Use RUNDLL32 PRINTUI.DLL,PrintUIEntry to install and configure printers.
RUNDLL32.EXE and PRINTUI.DLL are both native in Windows 2000 and later (as a matter of fact, RUNDLL32.EXE has been around a lot longer, as you might guess after taking a look at my RUNDLL page).

With PRINTUI.DLL you can add, configure and delete printers and printer drivers, both local and remote.
The command line switches can be supplied on the command line or read from a file.

My ExpPrnDr.bat (Export Printer Driver) uses Microsoft's DEVCON.EXE to list all files belonging to a specific printer driver, and PRINTUI.DLL to install that printer driver on any computer.

• If you prefer VBScript (or actually WSH, including VBScript and JScript), PRNADMIN.DLL is the tool for you.
PRNADMIN.DLL is part of the Windows Server 2003 Resource Kit, which can be downloaded for free.
Though PRNADMIN.DLL was available in the Windows 2000 Server Resource Kit too, it is not available in the free Windows 2000 Resource Kit Tools for administrative tasks download.

Unlike PRINTUI.DLL, PRNADMIN.DLL can be used to create printer ports too!

• With Microsoft's PrintMig tool you can create backups of your complete set of printers, ports, drivers, print processors and print monitors.
Unfortunately there is no way to selectively backup nor restore, so you may want to backup a clean test system with just the printers and components you need to migrate.

If you need to migrate a single printer, use my ExpPrnDr.bat (Export Printer Driver) instead.
It uses Microsoft's DEVCON.EXE to list all files belonging to a specific printer driver, and PRINTUI.DLL to install that printer driver on any computer.

• An often overlooked way to add a network printer connection to a Windows computer is the following one-liner:

    START \\servername\printername

or, if the printer name contains spaces:

    START "Printer" "\\servername\printer name"

Granted, this isn't a completely unattended installation, as it will still ask for confirmation from the user. But, hey, it's simple!

Devices and drivers

• Many hardware drivers come as .MSI files, in which case you can (un)install them like any other .MSI package.

• If a driver comes as a set of (uncompressed) files including a .INF file, use:

    RUNDLL32.EXE AdvPack.dll,LaunchINFSection filename.inf,,3

or:

    RUNDLL32.EXE SetupAPI.dll,InstallHinfSection DefaultInstall 128 filename.inf

The number 128 in the second RUNDLL32.EXE command means no reboot:

If the path or file name of the .INF file contains spaces, use the short file name notation. Never use quoted long file names!

A sample using AdvPack.dll, to remove Windows Media Player (9):

    RUNDLL32.EXE AdvPack.dll,LaunchINFSection %windir%\INF\wmp.inf,Uninstall

• Another way to install drivers that come with .INF files is using DEVCON:

    DEVCON.EXE [-r] install filename.inf hwid

• Another use for DEVCON is to remove existing devices, even when still physically connected, install new drivers and then rescan for "new" hardware to reinstall the devices with the new drivers:

    :: Remove all existing smartcard readers (modify
    :: the FIND command to remove only specific devices)
    FOR /F "tokens=1 delims=: " %%A IN ('DEVCON FindAll ˆ=SmartCardReader ˆ| FIND ":"') DO (
        DEVCON Remove "@%%~A"
    )
    :: Uninstall the old driver and install the new driver(s)
      •
      •
      •
    :: Scan for new hardware
    DEVCON Rescan

Encryption

To use encryption we will need keys and certificates.

CERTREQ and CERTUTIL from the Windows Server 2003 Support Tools can be used to query and manage (CA) certificates without user interaction.

In Windows 2000 and later, CRYPTEXT.DLL can be used with RUNDLL32.EXE:

RUNDLL32.EXE CRYPTEXT.DLL,CryptExtOpenCAT %1
RUNDLL32.EXE CRYPTEXT.DLL,CryptExtAddCER %1
RUNDLL32.EXE CRYPTEXT.DLL,CryptExtOpenCER %1
RUNDLL32.EXE CRYPTEXT.DLL,CryptExtOpenSTR %1
RUNDLL32.EXE CRYPTEXT.DLL,CryptExtAddCRL %1
RUNDLL32.EXE CRYPTEXT.DLL,CryptExtOpenCRL %1
RUNDLL32.EXE CRYPTEXT.DLL,CryptExtAddP7R %1
RUNDLL32.EXE CRYPTEXT.DLL,CryptExtOpenP7R %1
RUNDLL32.EXE CRYPTEXT.DLL,CryptExtOpenPKCS7 %1
RUNDLL32.EXE CRYPTEXT.DLL,CryptExtAddPFX %1
RUNDLL32.EXE CRYPTEXT.DLL,CryptExtAddSPC %1
RUNDLL32.EXE CRYPTEXT.DLL,CryptExtOpenPKCS7 %1
RUNDLL32.EXE CRYPTEXT.DLL,CryptExtAddCTL %1
RUNDLL32.EXE CRYPTEXT.DLL,CryptExtOpenCTL %1

CryptExtAddCER will open the wizard to add a certificate with a .CER extension, CryptExtOpenCER will display a .CER certificate's properties dialog.

You can use KiXtart's or VBScript's SetFocus( ) and SendKeys( ) functions to "click" through the wizards' dialogs.
If you use this method in automated installations, make sure a user is logged in and understands that he/she should not touch the mouse or keyboard until the installation is finished. Otherwise, if the wizard's dialog looses focus the installation will fail.

Microsoft's CAPICOM in conjunction with KiXtart, VBScript or (Object) Rexx can also be used to manage certificates.

.MSI Files

Use Windows Installer (executable name: MSIEXEC.EXE) to install .MSI files.

The general command syntax for unattended installations of .MSI files (with verbose logging, without reboot) is:

    MSIEXEC.EXE /I myfile.MSI /QN /L*V myfile.LOG /norestart REBOOT=ReallySuppress

The general uninstall command syntax (with verbose logging and without reboot) is:

    MSIEXEC.EXE /X myfile.MSI /QN /L*V myfile.LOG /norestart REBOOT=ReallySuppress

or:

    MSIEXEC.EXE /X {unique_identifier} /QN /L*V myfile.LOG /norestart REBOOT=ReallySuppress

The latter does not require the original .MSI file. The unique identifier can be found in the registry under HKLM\SOFTWARE\Microsoft\Windows\CurrentVersion\Uninstall, it is the name of the subkey.
You may also want to take a look at the UninstallString values under each subkey.

My own GetUnins.vbs uses this technique.

More details and links are available on my MSIEXEC.EXE page.

Links/Related Stuff

• JGSoft's DeployMaster installer
• Unattended and silent installations, Get info from MSI files and Extract CAB files from MSI files by Adriaan Westra.
• Wise Package Studio for Newbies
• Rogue Spear's Application's Managed Installer (AMI)
• How to Repack an Application with AdminStudio
• AppDeploy.com
• More links
